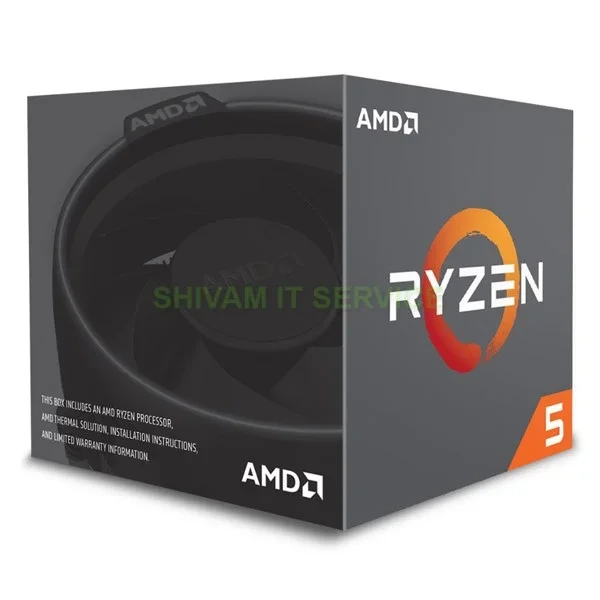

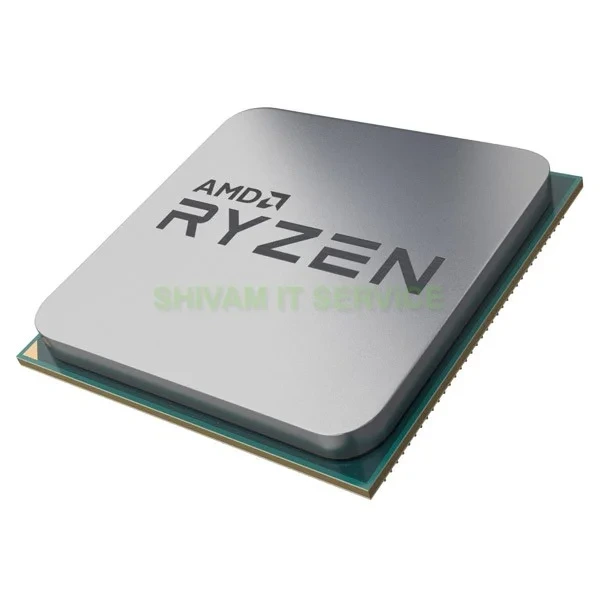

NameAMD Ryzen™ 5 3400G with Radeon™ RX Vega 11 Graphics
FamilyRyzen
SeriesRyzen 3000 Series
Form FactorDesktops , Boxed Processor
Market SegmentMainstream Desktop
Regional AvailabilityGlobal , China , NA , EMEA , APJ , LATAM
Former CodenamePicasso
Processor ArchitectureZen+
# of CPU Cores4
Multithreading (SMT)Yes
# of Threads8
Max. Boost ClockUp to 4.2 GHz
Base Clock3.7 GHz
L1 Cache384 KB
L2 Cache2 MB
L3 Cache4 MB
Default TDP65W
AMD Configurable TDP (cTDP)45-65W
Processor Technology for CPU Cores12nm FinFET
CPU Compute Die (CCD) Size210mm²
Package Die Count1
Total Transistor Count4.94 Billion
Unlocked for OverclockingYes
CPU SocketAM4
Supporting ChipsetsX570 , X470 , X370 , B450 , B350 , A320
CPU Boost TechnologyPrecision Boost 2
Instruction Setx86-64
Supported ExtensionsAES , AMD-V , AVX , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Max. Operating Temperature (Tjmax)95°C
Launch Date07/07/2019
*OS SupportWindows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Native USB 3.2 Gen 2 (10Gbps)0
Native USB 3.2 Gen 1 (5Gbps)4
Native USB 2.0 (480Mbps)0
Native SATA Ports0
PCI Express® VersionPCIe® 3.0
Native PCIe® Lanes (Total/Usable)20 , 16
NVMe SupportBoot , RAID0 , RAID1 , RAID10
System Memory TypetdR4
Memory Channels2
Max. Memory64 GB
System Memory SubtypeUDIMM
Max Memory Speed2x1R DDR4-2933
2x2R DDR4-2667
4x1R DDR4-2133
4x2R DDR4-1866
ECC SupportYes (Requires mobo support)
Graphics ModelRadeon™ RX Vega 11 Graphics
Graphics Core Count11
Total Graphics Shaders704
Graphics Frequency1400 MHz
GPU Max. Memory2 GB
WtdM Version2.7
DirectX® Version12
OpenGL®4.6
OpenCL™2.2
DisplayPort™ Version1.4a
DisplayPort ExtensionsAdaptive-Sync , HBR3 , HDR Metadata
DisplayPort Max Refresh Rates (SDR)3840x2160 @ 60Hz , 3440x1440 @ 144Hz , 2560x1440 @ 180Hz , 1920x1080 @ 240Hz
DisplayPort Max Refresh Rates (HDR)3840x2160 @ 60Hz , 3440x1440 @ 60Hz , 2560x1440 @ 60Hz , 1920x1080 @ 120Hz
HDMI® Version2.0
HDCP Version Supported2.2
USB Type-C® DisplayPort™ Alternate ModeYes
Multi-Monitor SupportYes
Max Displays3
AMD FreeSync™Yes
AMD Eyefinity Single Large Surface (SLS)No
Wireless DisplayMiracast
Max Video Encode Bandwitdh (SDR)
1080p205 8bpc H.264, 1440p115 8bpc H.264, 2160p51 8bpc H.264, 1080p205 8bpc H.265, 1440p115 8bpc H.265, 2160p51 8bpc H.265
Max Video Decode Bandwitdh
1080p60 MPEG2, 1080p60 VC1, 1080p240 8bpc VP9, 1080p240 10bpc VP9, 1080p240 H.264, 1080p240 8bpc H.265, 1080p240 10bpc H.265, 1080p240 JPEG 8bpc
